Thor HDMI Modulator | QAM RF Coax Output – Full HD up to 1080P – 1,4,8 Channel

The Thor HDMI Modulator is a versatile device designed to convert audio and video signals into RF outputs, supporting QAM, ATSC, DVB-T, and ISDB-T modulation. Available in 1, 4, or 8-channel configurations, it integrates MPEG2 encoding and modulation, delivering Full HD quality up to 1080p/60 resolution. This modulator is HDCP compliant and works with any HDMI source, such as DVD players or cable satellite set-top boxes.

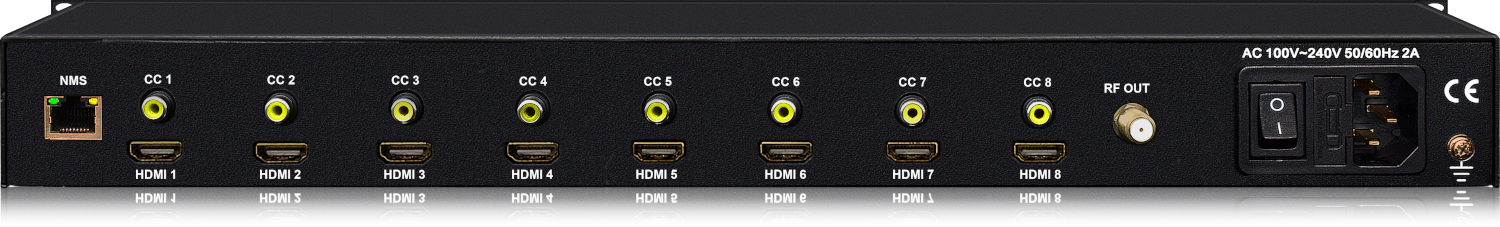

The 8-channel model provides added flexibility with 8 HDMI inputs and 8 CVBS baseband video inputs, which can be used for closed captioning. Its modular design supports up to 8 HDMI inputs, making it scalable and reliable for various applications. Compatible with set-top boxes, satellite receivers, CCTV cameras, or antennas, it ensures seamless integration with any TV or set-top box worldwide.

This unit offers a cost-effective solution by modulating each program on its own frequency with CATV RF output only, without IPTV output. The 8-channel model’s inputs can be utilized for closed captioning from video devices like DVD players or cable set-top boxes with CVBS output CC 21.

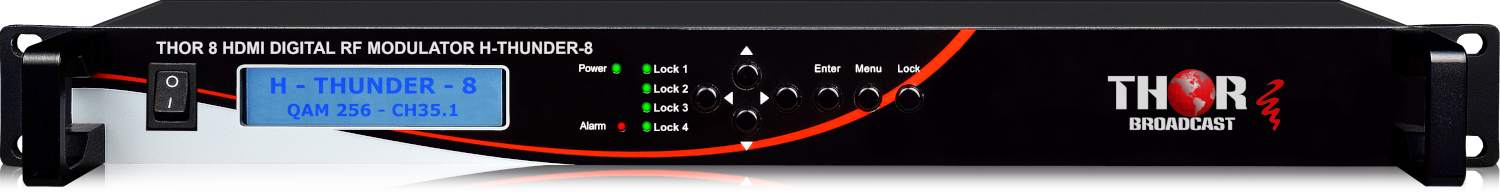

The Thor HDMI Modulator supports multiple modulation standards in a single unit, making it a plug-and-play device suitable for global use. It features MPEG2 encoding, Dolby Audio Encoding, and front panel control, ensuring high performance and ease of use.

Choose the model that best fits your needs: H-THUNDER-1, H-THUNDER-4, or H-THUNDER-8, and enjoy seamless integration and reliable performance.
