Thor 2 HDMI YPbPr HD Digital TV Modulator QAM ATSC DVB-T IPTV 1080p/60

The Thor Broadcast H-2ADHD is a compact HDTV encoder modulator that delivers RF, ASI, and IP outputs simultaneously. With an intuitive NMS GUI interface, you can easily manage settings via any web browser, giving you complete control over the encoder. It supports full HD 1080p60 encoding from any HDMI source and offers both QAM and ATSC modulation standards, switchable through a simple dropdown menu in the GUI.

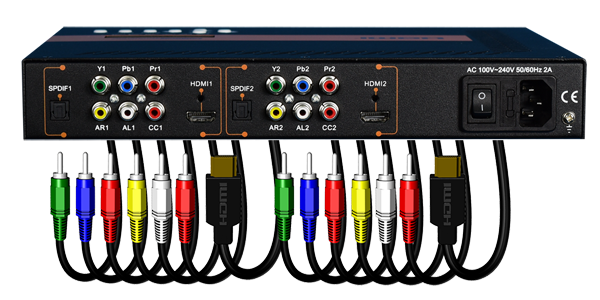

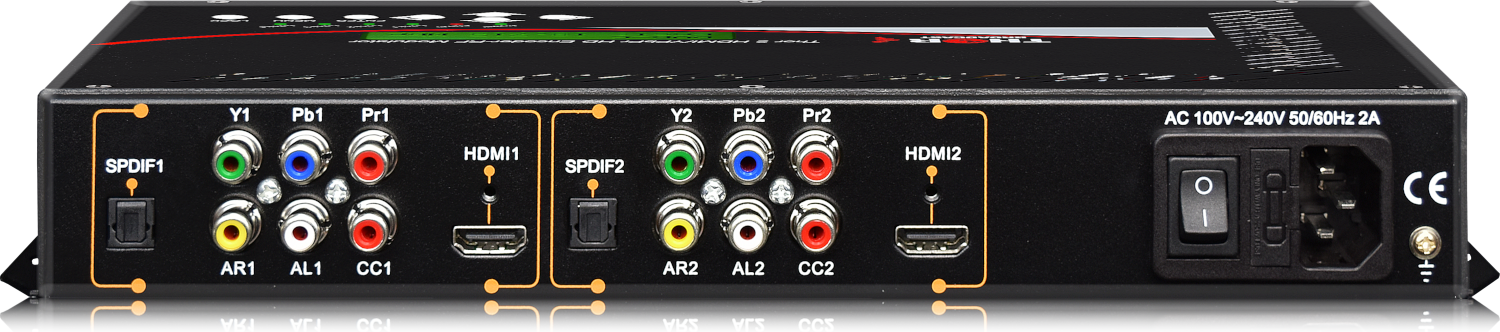

This versatile device supports QAM, ATSC, DVB-T, and ISDB-T modulations. It features a compact design with dual HDMI, YPbPr, and CVBS inputs, making it a powerful HDTV coax modulator, IPTV encoder, and ASI multiplexer. The H-2ADHD is crafted for high-density digital HDTV channel generation, accepting video inputs in all standard HD or SD formats, including component, composite, or HDMI. It also includes advanced functions typically found in larger rack systems.

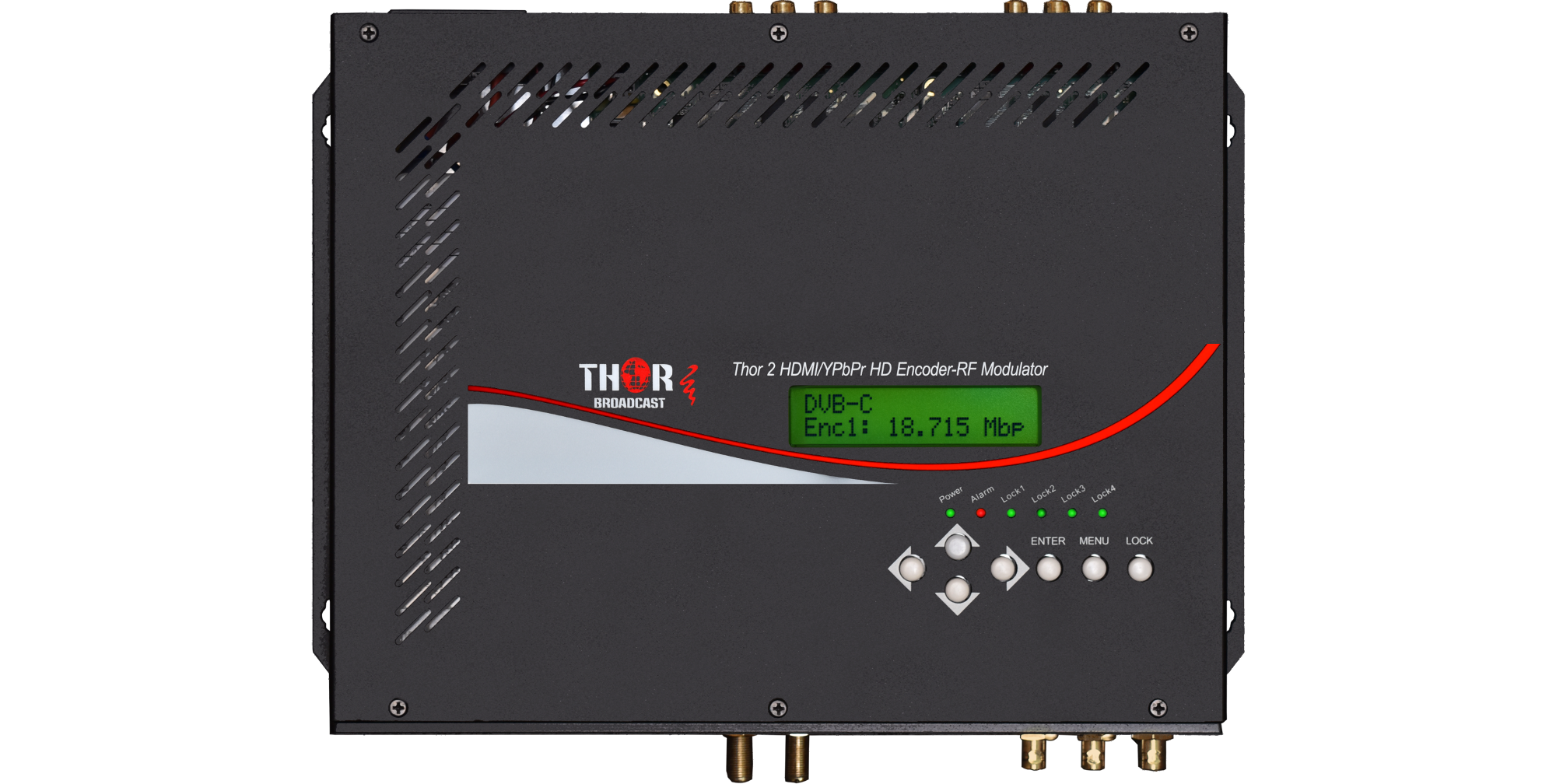

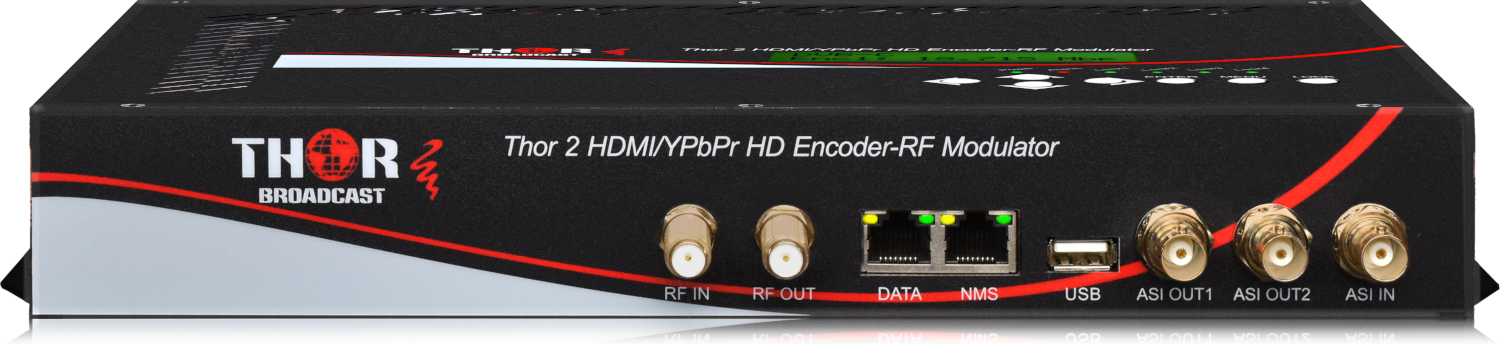

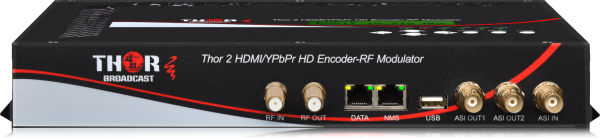

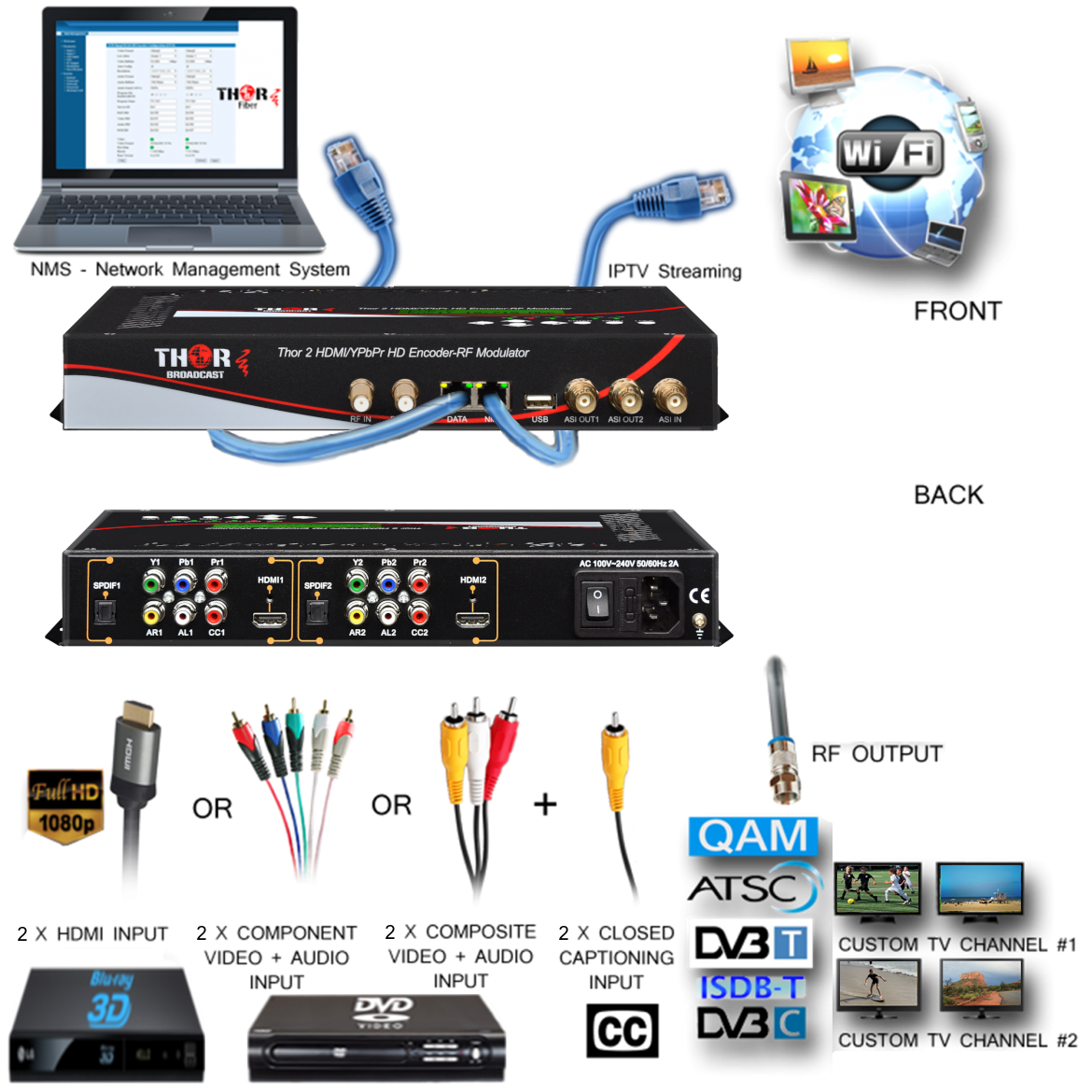

All functions can be configured via a keypad and LCD display on top of the unit, though using a web browser is preferred. The unit includes two Ethernet ports: one for configuration and another for IPTV output. IPTV output is available in UDP unicast or multicast formats, with options for single program SPTS outputs and a combined multi-program MPTS stream. For broadcasters, ASI input and output are available on BNC terminals, and HDTV output is provided on standard 75-ohm Type-F connectors with adjustable RF output power.

The H-2ADHD allows modulation of both QAM and ATSC standards without needing to reprogram the unit, thanks to the functional NMS GUI. For more details, please contact a sales representative.

This unit is suitable for various applications, including:

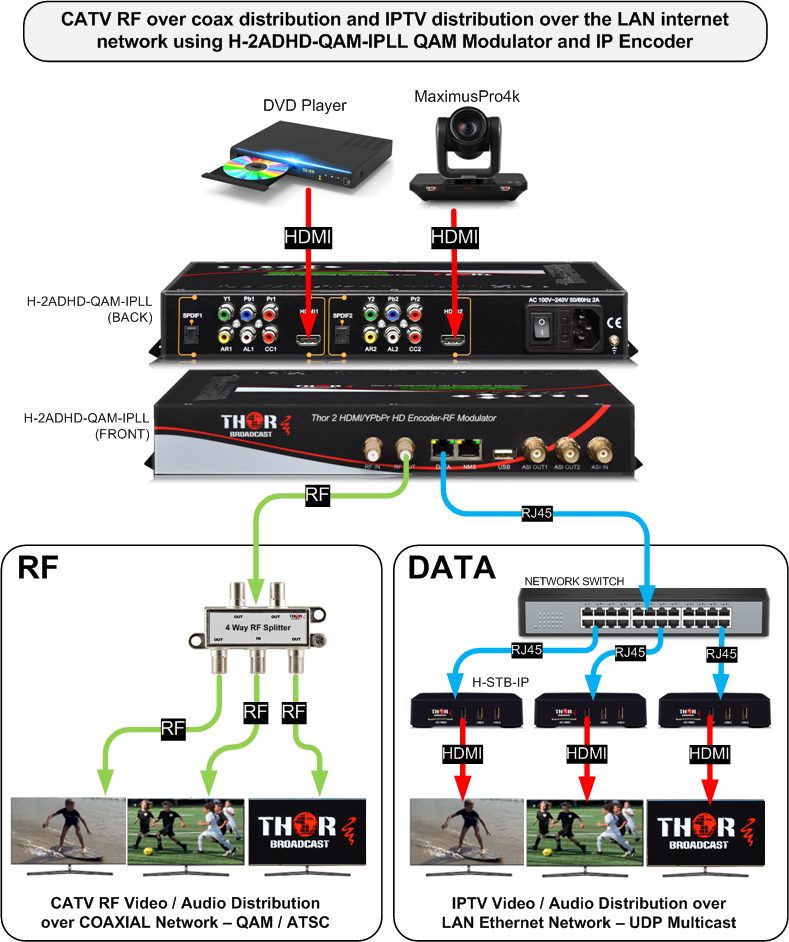

• Converting 2 HDMI, CVBS, or YPbPr inputs to QAM, ATSC, DVB-T, or ISDB-T modulated output
• Converting 2 HDMI, CVBS, or YPbPr inputs to IPTV UDP/RTP/RTSP multicast
• Converting DVB-ASI to QAM, ATSC, DVB-T, ISDB-T
• Converting DVB-ASI to IPTV
• Converting 2 HDMI, CVBS, or YPbPr inputs to DVB-ASI

Model: H-2ADHD-QAM-IPLL

Discover the capabilities of the Thor Broadcast H-2ADHD for your broadcasting needs.
